This comprehensive guide covers everything from hardware selection and initial setup to ongoing maintenance and troubleshooting for the Cubigo Dining POS system.
1. Hardware Selection and Integration Options
Before setup, determine which output method best suits your community's environment.
Output Methods
-
Ticket Printers: Cubigo integrates with Star Micronics thermal and impact printers using CloudPRNT technology, allowing for direct cloud-to-printer communication.
Thermal Printers: Recommended for front-of-house receipts as they are faster and quieter.
Impact Printers: Recommended for hot kitchens; thermal paper turns black when exposed to high heat.
Digital Integration (Fresh KDS): Replaces traditional printers with digital screens. It supports real-time updates for drafts, voided items, and resident preferences like allergies or diets.
Core Requirements
Networking: Devices connect to the network via Ethernet or compatible Wi-Fi dongles.
MAC Address: A unique identifier required for Cubigo to enable printing.
2. Printer Installation & Configuration
Follow these steps to bring a new Star Micronics printer online.
Physical Setup
Placement: Place on a steady surface and connect power and Ethernet cables.
Paper Loading: Install the paper roll so it rolls toward you.
Identify IP: Power off, hold Feed, and power back on until the third slip shows the MAC and IP address.
Software Configuration
-

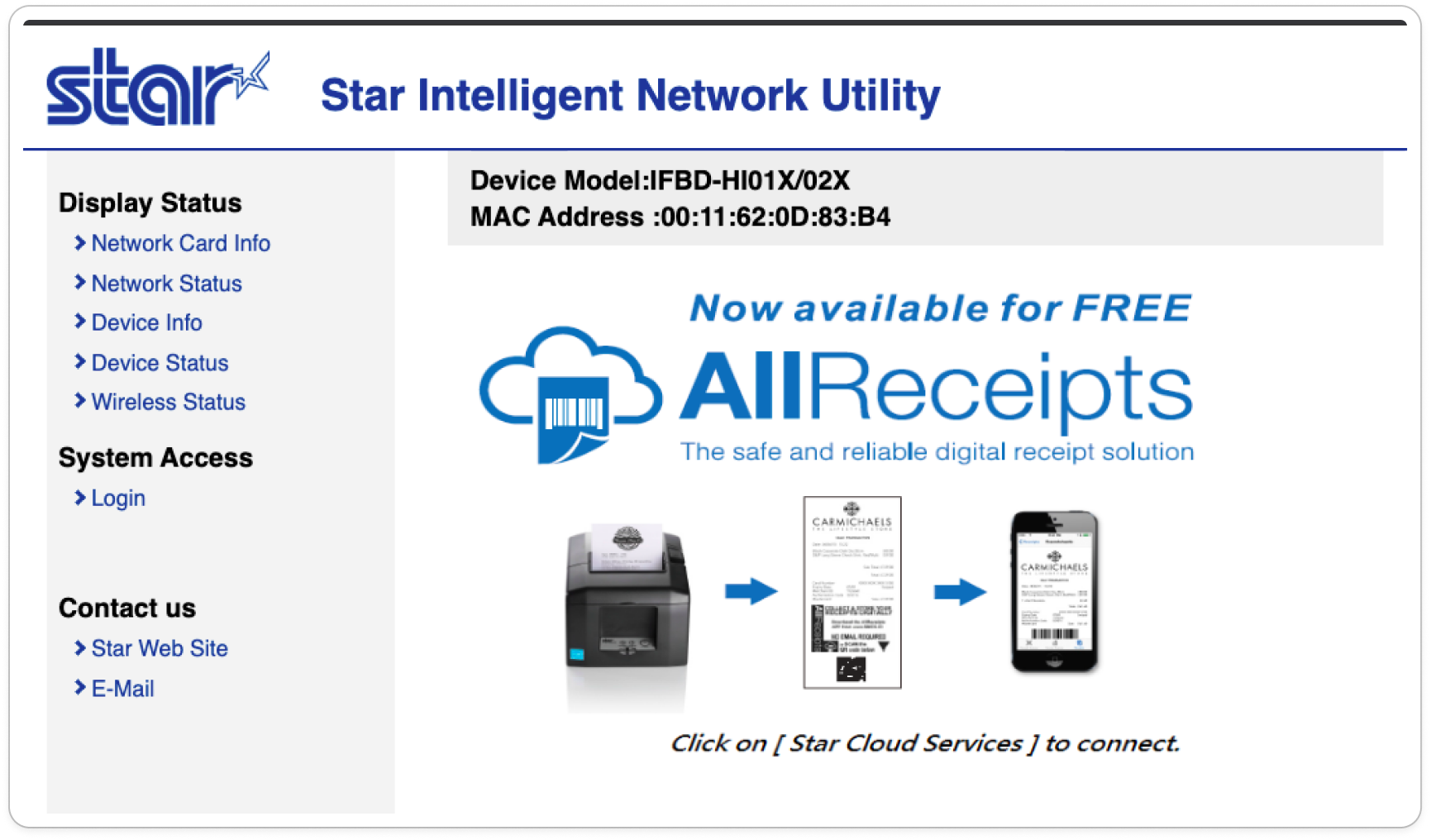

Access Utility: Browse to the IP and log in with

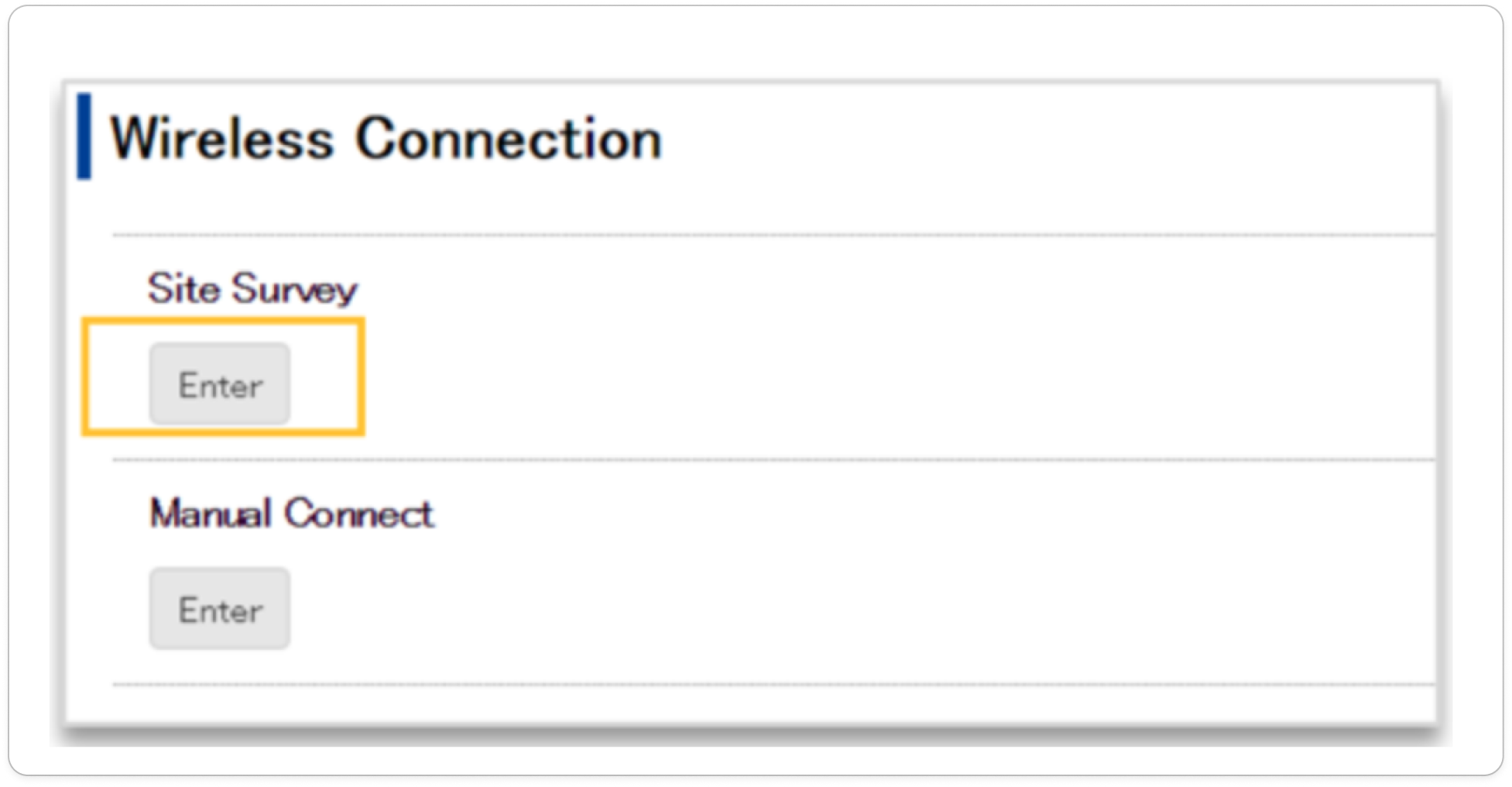

root/public. Wireless: Connect to Wi-Fi under Configuration > Wireless Network.

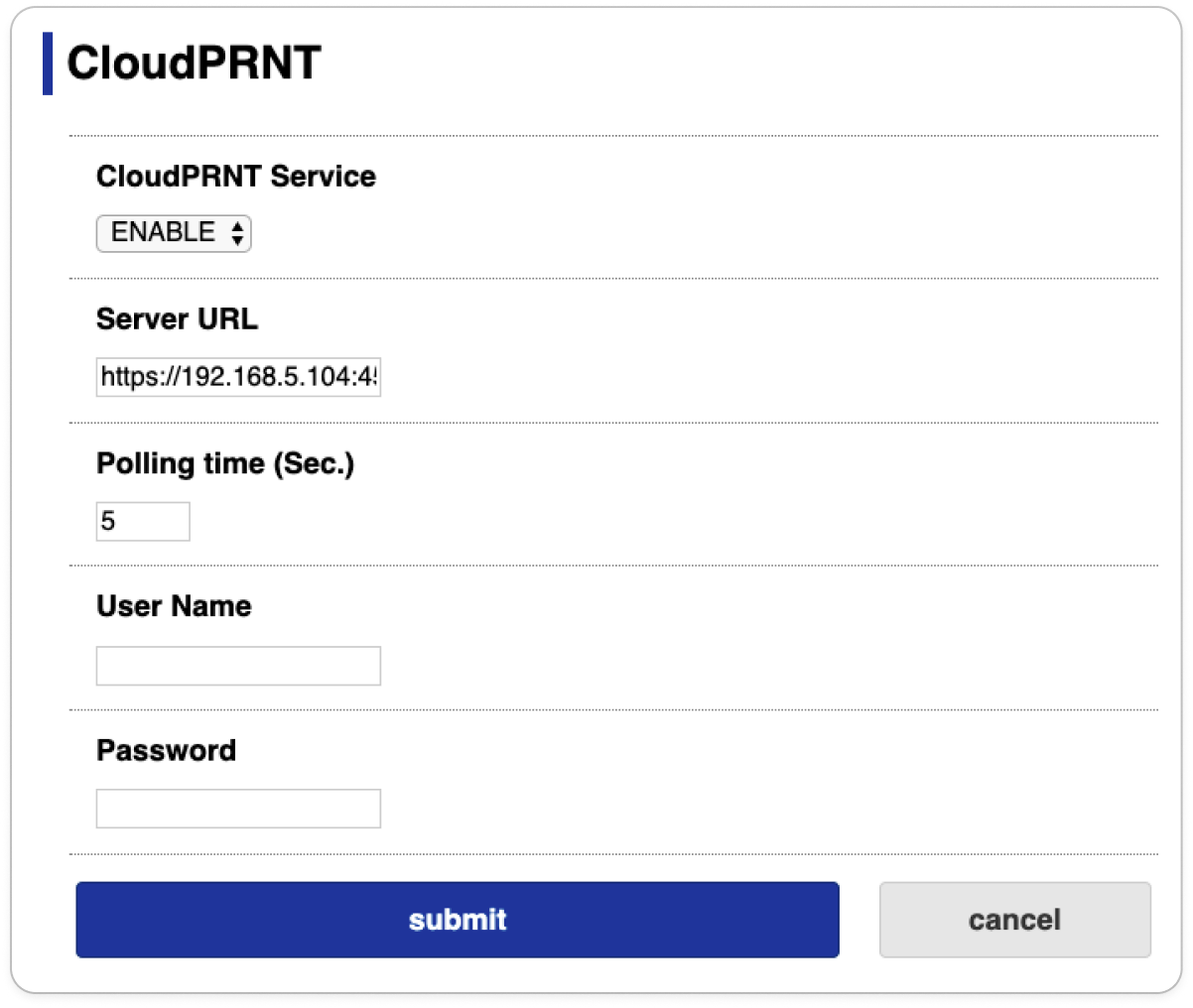

CloudPRNT Setup: Enable CloudPRNT and enter the Server URL:
https://starcloudprint.cubigo.com/api/starcloud/.
3. Operational Troubleshooting
Use these indicators to resolve common service disruptions.
Understanding POS Tickets
Tickets include two critical timestamps:
Top Time: When residents were seated.
Bottom Time: When the order was created.
Common Error Solutions
| Issue | Potential Cause | Resolution |
|---|---|---|
| Time is off by hours | Incorrect User Settings | Check the staff member's timezone in User Management. |
| Printer Red Light (Flashing) | Recoverable Error | Check for Cover open, Paper out, or Head high temperature. |
| Unrecoverable Error | Hardware Failure | Restart device; if Power is OFF and Error flashes, check supply or cutter. |
| Swap/Move Printer | MAC Conflict | Do not swap printers without notifying Cubigo Support to update MAC settings. |
